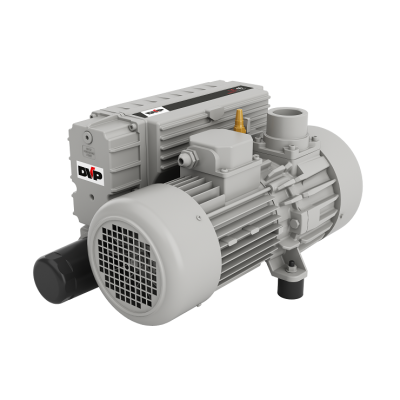

DVP Pumps - LC.151 Kzero | Oil Lubricated Rotary Vane Vacuum Pump | 5 HP, 106.6 CFM, 29.80" HgV, 71 dB(A) | IE3-UL-208-230V/460V/60Hz | 9603037/SG

Model:
LC.151 Kzero (208-230V/460V)
Vendor Item Number:
9603037/SG
+ -
$6,595.25
Call Any of our Sales Experts to Place an Order. We offer Expert Advice, Quick Quotes and Product Availability.
Our Team Consists of "Vacuum Experts", Challenge Us!
Mon-Fri 8 am to 5:00 pm EST
Coming Soon; Hours to 8:00 pm EST

Call Toll Free: 866.778.6572 within the Lower 48 States

Outside the US: 508.230.7118

"Over 100 Years of Experience"
Ships Factory Direct
  • DESCRIPTION
  • TECH DATA
  • PRODUCT REVIEWS
  • Documents
  • Product Q & A

DESCRIPTION

DVP Pumps - LC.151 Kzero | Oil Lubricated Rotary Vane Vacuum Pump | 5 HP, 106.6 CFM, 29.80" HgV, 71 dB(A) | IE3-UL-208-230V/460V/60Hz | 9603037/SG

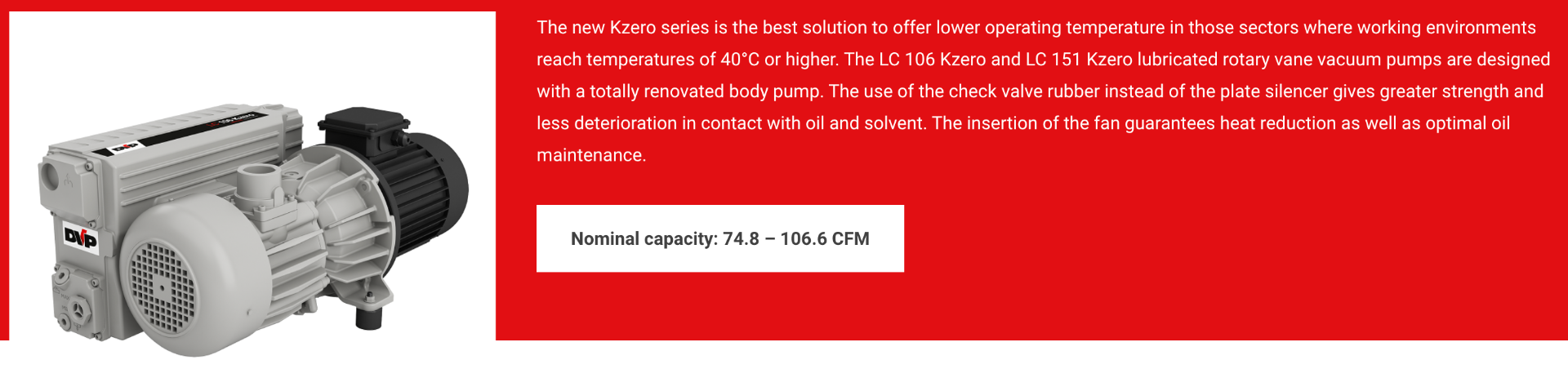

The fixing points, oil filter and exhaust filter are the same as those of the standard models. LC 106 Kzero and LC 151 Kzero are suitable for continuous operation within a pressure range of 400 mbar to 4 mbar (Abs).

The LC 106 Kzero and LC 151 Kzero pumps are equipped with:
• Oil check valve
• Exhaust mist eliminator
• Automatic floating oil recovery valve
• Shock mounts (the height of the complete assembly is the same as that of the previous model which was without them)
• Oil filter with by-pass
• Flexible transmission coupling

Main application fields:
electronic transformers drying; centralized medical units; ceramic extruder and degassers; metal washers and metal treatment machines.

LC.106 Kzero

LC.106 Kzero

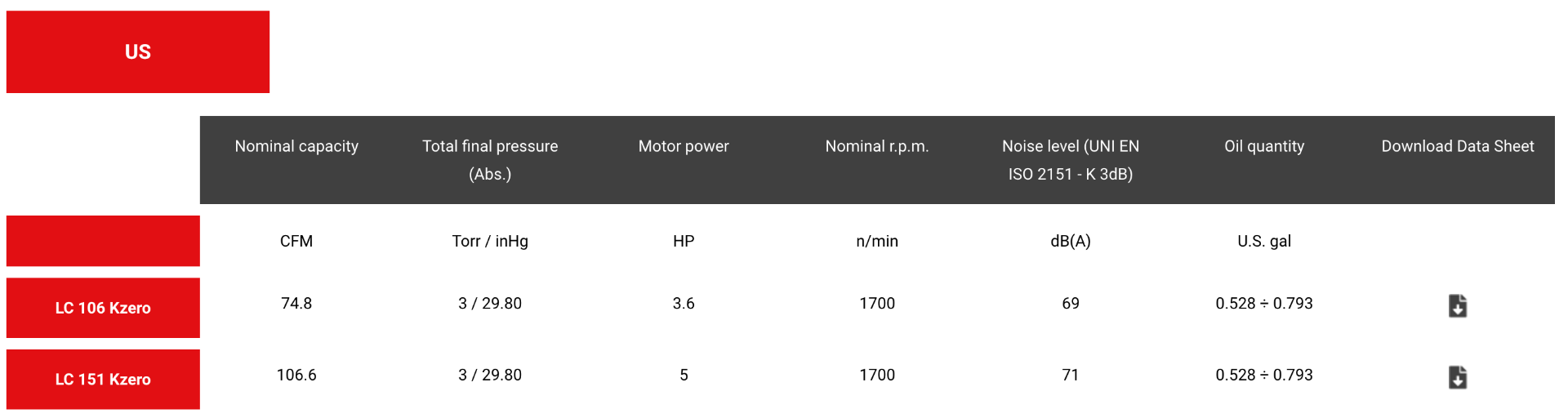

TECH DATA

  • Product Specification

    • CFM (Capacity)
      106.6 CFM
    • Horsepower (HP)
      5 HP
  • Overview & Technical Details

    • Sound Level dBA
      71 dB(A)
  • Power Requirements

    • 208/3/60
      Standard
    • 230/240/3/60
      Standard
    • 460/480/3/60
      Standard
    • Standard Voltages
      208-230/460/60Hz
  • Warranty

    • Standard Warranty
      Factory Warranty
