DEKKER DV0035D-MA3-SGL, 35 ACFM, 3 HP Single-Stage Motor-Mounted Liquid Ring Vacuum Pump

Model:
DV0035D-MA3-SGL
+ -
$3,595.00
Call Any of our Sales Experts to Place an Order. We offer Expert Advice, Quick Quotes and Product Availability.
Our Team Consists of "Vacuum Experts", Challenge Us!
Mon-Fri 8 am to 5:00 pm EST
Coming Soon; Hours to 8:00 pm EST

Call Toll Free: 866.203.9939 within the Lower 48 States

Outside the US: 508.230.7118

"Over 100 Years of Experience"
Ships Factory Direct
  • DESCRIPTION
  • TECH DATA
  • PRODUCT REVIEWS
  • Documents
  • Product Q & A

DESCRIPTION

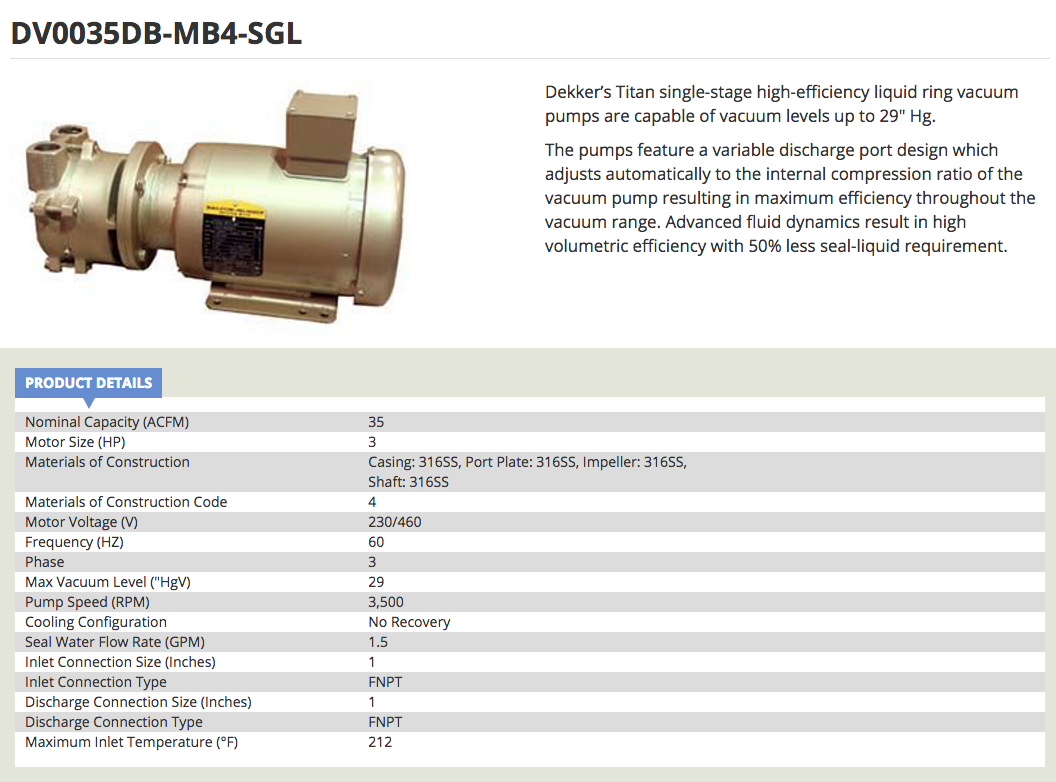

3 HP Single-Stage Motor-Mounted Liquid Ring Vacuum Pump DEKKER DV0035DB

Dekker’s Titan single-stage high-efficiency liquid ring vacuum pumps are capable of vacuum levels up to 29" Hg.

The pumps feature a variable discharge port design which adjusts automatically to the internal compression ratio of the vacuum pump resulting in maximum efficiency throughout the vacuum range. Advanced fluid dynamics result in high volumetric efficiency with 50% less seal-liquid requirement.

Product Features

  • Designed for heavy duty applications
  • 316 stainless steel impeller is standard
  • Features economical UL/CSA EISA or EPACT (model DV0006B-M only) compliant motor mounted design
  • Manufactured to ISO 9001:2008 standards
  • Low operating noise level
  • Features single face mechanical seal as standard
  • Virtually no maintenance is required
  • Compact design results in small footprint design
  • Capable of handling saturated gas mixtures
  • Capable of handling small amounts of liquids
  • Only one moving part
  • Operates using various seal fluids

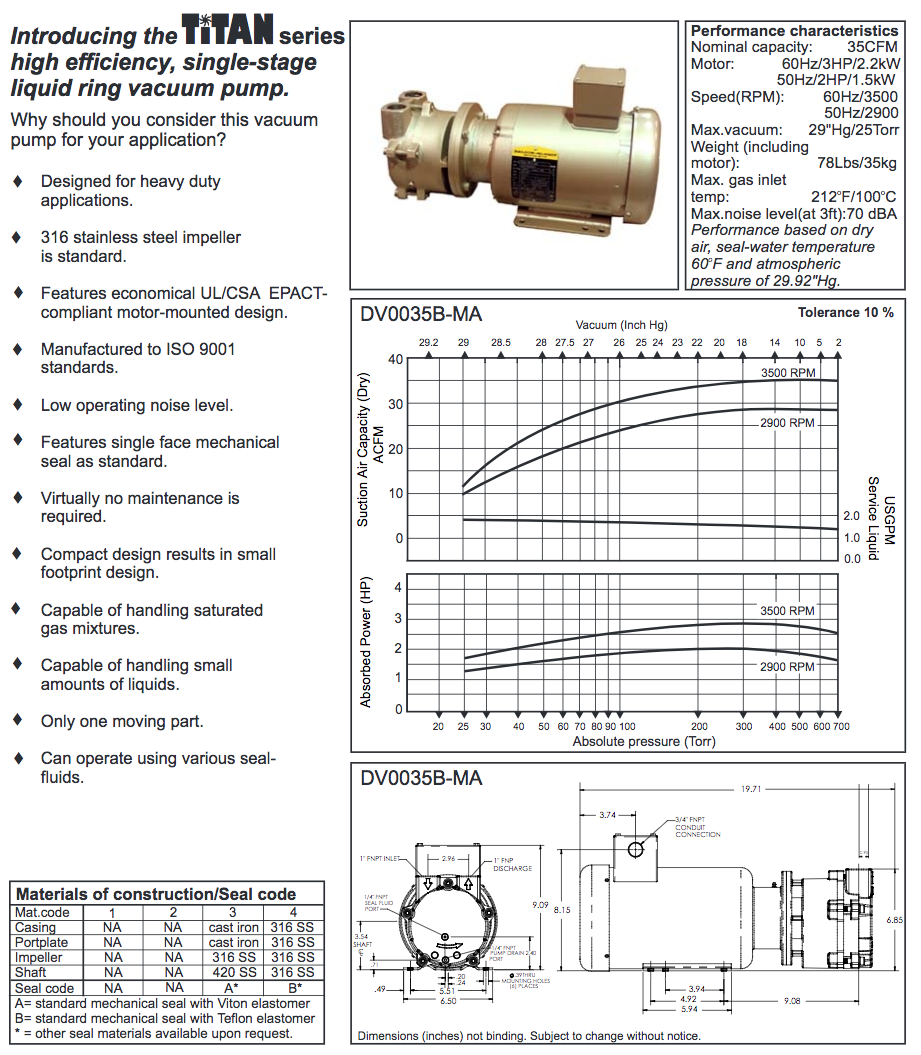

TECH DATA

  • Product Specification

    • CFM (Capacity)
      35 CFM
    • Horsepower (HP)
      3 HP
    • RPM
      3600 RPM
  • Overview & Technical Details

    • Max Gas Inlet Temp
      212 Degrees F
    • Max Vacuum Level ("HgV)
      29" Hg/25Torr
    • Sound Level dBA
      70 dB(A)
  • Power Requirements

    • 230/240/3/60
      Standard
    • 460/480/3/60
      Standard
  • Warranty

    • Standard Warranty
      Factory Warranty
