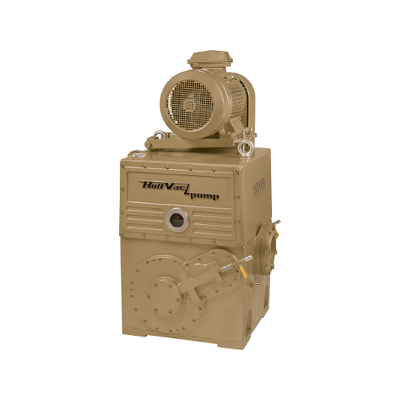

Dekker HVC35A, 32 ACFM, 3 HP, Hullvac Two-Stage Rotary Piston Vacuum Pumps

Model:
HVC35A
+ -
$10,237.00
Call Any of our Sales Experts to Place an Order. We offer Expert Advice, Quick Quotes and Product Availability.
Our Team Consists of "Vacuum Experts", Challenge Us!
Mon-Fri 8 am to 5:00 pm EST
Coming Soon; Hours to 8:00 pm EST

Call Toll Free: 866.203.9939 within the Lower 48 States

Outside the US: 508.230.7118

"Over 100 Years of Experience"
Ships Factory Direct
  • DESCRIPTION
  • TECH DATA
  • PRODUCT REVIEWS
  • Documents
  • Product Q & A

DESCRIPTION

Dekker HVC35A, 32 ACFM, 3 HP, Hullvac Two-Stage Rotary Piston Vacuum Pumps

HullVac rotary piston vacuum pumps are engineered for a long life, top performance, low maintenance and ease of use. DEKKER offers a comprehensive selection of models with valuable features and expert after-sales service, including a standard three-year warranty—the best in the industry.

Product Features

  • Sealed Bearings—Bearing life is enhanced by isolating them from harmful process grit and solvents.
  • Tough Valve Assemblies—Heavy duty studs, springs and wear plates are mounted to hardened steel seats designed to prevent broken springs from falling into the pumping chamber.
  • Internal Sealing Fluid Channels—Sealing oil enters the pumping chambers through internal channels rather than exterior piping that is prone to damage and leakage.
  • Metal Belt Guards—Steel construction enhances safety and durability.
  • Oil Flow Indicator—An oil stream splashes onto the site port ensuring easy verification even when oil is opaque.
  • Redundant Shaft Seals—Triple Redundant Viton shaft seals ride on hardened steel sleeves to guard against leakage.
  • Caged Hinge Bars—One piece construction enhances wear life and reduces operating noise.
  • Large Site Port—Large diameter glass site port with stainless steel bezel and o-ring seal makes checking oil level and condition easy even when oil is opaque.
  • No Center Wall Bearing—Failures associated with lubricating a difficult to reach bearing are eliminated.

Specs

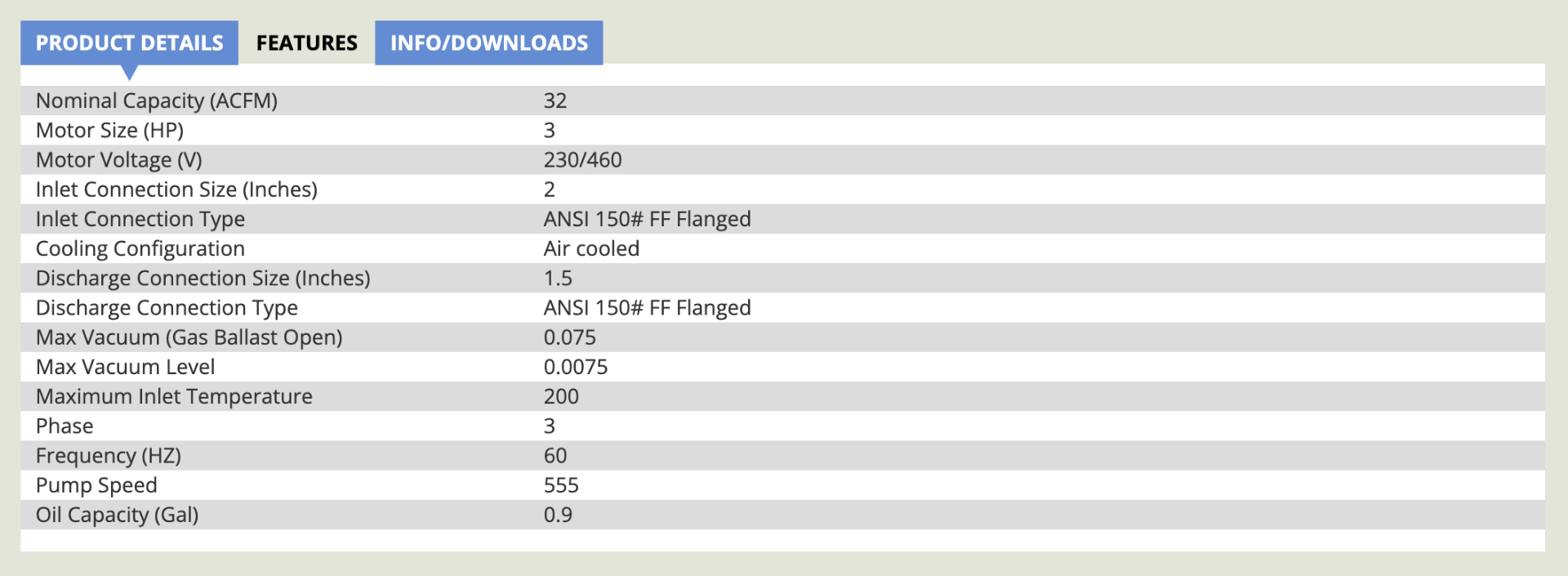

TECH DATA

  • Product Specification

    • CFM (Capacity)
      32
    • Cooling Configuration
      Air Cooled
    • Horsepower (HP)
      3 HP
    • Oil Capacity
      0.9 GAL
    • Pump Speed (RPM)
      555
  • Overview & Technical Details

    • Max Inlet Temperature
      200°F
    • Max Vacuum Level:
      0.0075
  • Connection

    • Discharge Connection Size (Inches)
      1.5"
    • Discharge Connection Type
      ANSI 150# FF Flanged
    • Inlet Connection Size (Inches)
      2"
    • Inlet Connection Type
      ANSI 150# FF Flanged
  • Power Requirements

    • 230/240/3/60
      Standard
    • 460/480/3/60
      Standard
