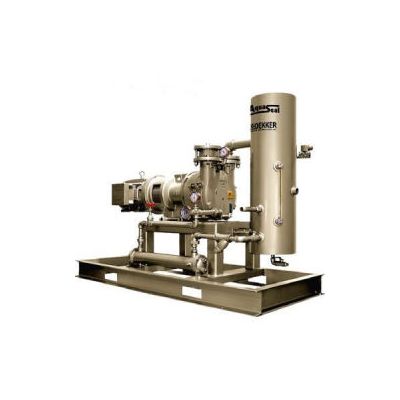

Dekker DVW0103MF1-01, 7.5 HP Liquid Ring Water-Sealed Vacuum Pump System - Full Recovery, 100 ACFM

Dekker DVW0103MF1-01, 7.5 HP Liquid Ring Water-Sealed Vacuum Pump System - Full Recovery, 100 ACFM

• TITAN single-stage motor-mounted or monoblock liquid ring vacuum pump
• Pump material: Cast iron casing/cast iron portplate/316SS or ductile iron impeller, Viton mechanical shaft seal
• Maximum vacuum 29" HgV
• Electric motor TEFC, 230/460V, 3phase, 60Hz
• Discharge separator-reservoir (Full Recovery)
• Level sight gauge, level switch
• Compound gauge, temperature gauge, vacuum gauge
• Seal fluid make-up solenoid valve 110VAC
• Seal fluid piping and accessories (isolation valve, y-strainer, flow control valve)
• Inlet check valve
• Heat exchanger - CS, Cu tubes - requires 50° F cooling water, 10° F approach
• Pump drain valve (7.5 HP and up)

Excludes Starter and Control Panel
