Dekker DV2001K-K, 1500-2050 ACFM, 100 HP, Maxima-1K series (Flat Plate) Single-Stage High Efficiency Liquid Ring Vacuum Pump

Model:
DV2001K-K
Call Any of our Sales Experts to Place an Order. We offer Expert Advice, Quick Quotes and Product Availability.
Our Team Consists of "Vacuum Experts", Challenge Us!
Mon-Fri 8 am to 5:00 pm EST
Coming Soon; Hours to 8:00 pm EST

Call Toll Free: 866.203.9939 within the Lower 48 States

Outside the US: 508.230.7118

"Over 100 Years of Experience"
Ships Factory Direct
  • DESCRIPTION
  • TECH DATA
  • PRODUCT REVIEWS
  • Documents
  • Product Q & A

DESCRIPTION

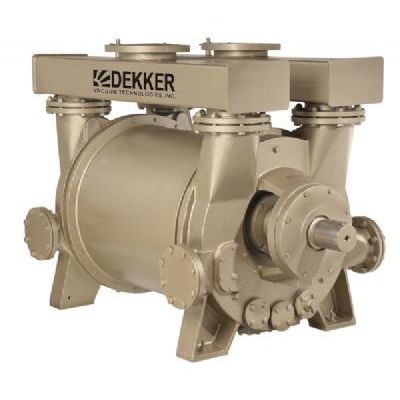

Dekker DV2001K-K, 1500-2050 ACFM, 100 HP, Maxima-1K series (Flat Plate) Single-Stage High Efficiency Liquid Ring Vacuum Pump

The Maxima-KTM design is a robust, single stage design which utilizes flat port plates mounted on each side of the impeller. The variable discharge port allows the pump to operate efficiently throughout the vacuum range. A heavy duty impeller features reinforcing rings to improve strength of the impeller blades and thus the durability of the pump. Packed gland sealing is standard, featuring a split ring gland for ease of maintenance; mechanical seals are optional. Access plates on both sides of the pump allow for quick access to evaluate clearance and perform boroscope inspection. The Maxima-K pumps are available in capacities ranging 1500 ACFM to 39,500 ACFM, are available in various materials/coatings and are manufactured to ISO 9001:2015 quality standards. Bolt in replacements are available for the NASHTM (or Siemens) 2BE series. Selection of Maxima-K versus Maxima-C depends on operating conditions and the most efficient operating point.

Product Features

  • Reliable heavy duty design, built to rigid standards
  • Variable discharge port enables pumps to operate at maximum efficiency over the entire vacuum range
  • Shaft sleeves are standard, virtually eliminating the possibility of shaft wear
  • Available in different materials to suit your application
  • Standard sealing is packed gland, mechanical seals available
  • Heavy duty bearings mounted external to the pumping chamber eliminating potential bearing failure due to process contamination
  • Low operating speeds ensure an extended life cycle
  • The pump can handle large amounts of condensable vapors which enhances the performance significantly
  • No metal-to-metal contact, only one moving part
  • The pumps can handle carry-over of liquids and/or soft solids without causing damage to the internal parts
  • The design allows operation with various seal fluids
  • Low operating noise levels are in the 75-85 dBA range
  • Inlet manifold and discharge separator are optional equipment and must be purchased separately.

Specs

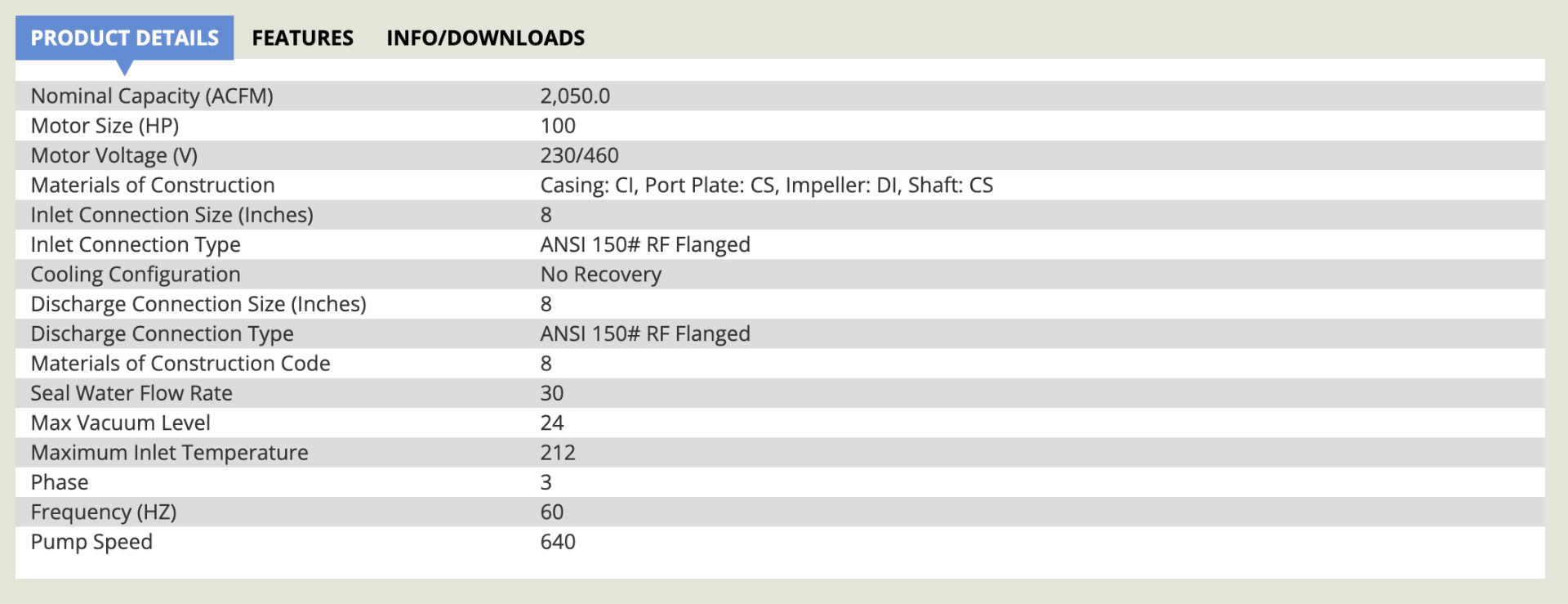

TECH DATA

  • Product Specification

    • CFM (Capacity)
      1500-2050 CFM
    • Cooling Configuration
      No Recovery
    • Horsepower (HP)
      100 HP
    • Pump Speed (RPM)
      640
  • Overview & Technical Details

    • Max Inlet Temperature
      212°F
    • Max Vacuum Level:
      24
    • Seal Water Flow Rate (GPM)
      30
  • Connection

    • Discharge Connection Size (Inches)
      8"
    • Discharge Connection Type
      ANSI 150# RF Flanged
    • Inlet Connection Size (Inches)
      8"
    • Inlet Connection Type
      ANSI 150# RF Flanged
  • Power Requirements

    • 230/240/3/60
      Standard
    • 460/480/3/60
      Standard
