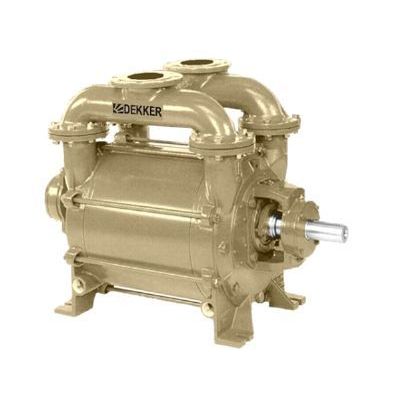

Dekker DV1200D-KA3, 1200 ACFM, 100 HP, Titan Single Stage Liquid Ring Vacuum Pump
Dekker offers the Titan single-stage high-efficiency liquid ring vacuum pumps, capable of vacuum levels up to 29" Hg.
The pumps feature a variable discharge port design which adjusts automatically to the internal compression ratio of the vacuum pump resulting in maximum efficiency throughout the vacuum range. Advanced fluid dynamics result in high volumetric efficiency with 50% less seal-liquid requirement.
- Designed for heavy duty applications
- Manufactured to ISO 9001:2015 standards
- Low operating noise level
- Heavy duty bearings mounted external to the pumping chamber
- Features single face mechanical seal as standard
- Virtually no maintenance is required
- Available in different materials to suit your application
- Capable of handling saturated gas mixtures
- Capable of handling small amounts of liquids
- Only one moving part
- Operates using various seal fluids
Pump Drive Configuration:
-K Bare shaft drive used with coupling and motor (sold separately). Can also be used with V-belt drive if pump is ordered with optional roller bearing.
