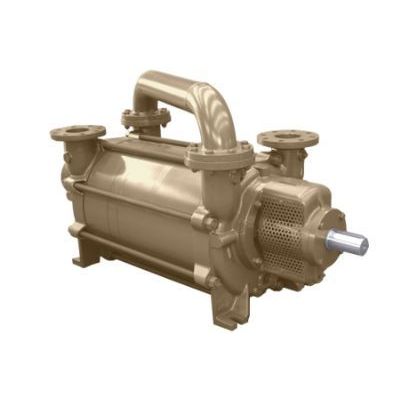

Dekker DV0751B-DB4, 800 ACFM, 75 HP, Titan Two Stage Liquid Ring Vacuum Pump

Dekker DV0751B-DB4, 800 ACFM, 75 HP, Titan Two Stage Liquid Ring Vacuum Pump

The Dekker Titan two-stage liquid ring vacuum pumps offer excellent efficiency when pumping saturated vapors at vacuum levels from 25" Hg up to 29"Hg.

The two-stage pump operates more efficiently than the single-stage design when pumping mixtures of air and condensable vapors above 25" Hg.

Features:

• Casing: 316SS, Port Plate: 316SS, Impeller: 316SS, Shaft: 316SS
• Designed for heavy duty applications
• Optional monoblock adaptor available which utilizes NEMA C-face motors
• Manufactured to ISO 9001:2015 standards
• Low operating noise level
• Heavy duty bearings mounted external to the pumping chamber
• Features single face mechanical seals as standard
• Virtually no maintenance is required
• Capable of handling saturated gas mixtures
• Capable of handling small amounts of liquids
• Only one moving part
• Can operate using various seal fluids
