Dekker DV0020D-KA3, 20 ACFM, 1.5 HP, Titan Single Stage Monoblock and Bare-Shaft Liquid Ring Vacuum Pump

Model:
DV0020D-KA3
+ -
$2,319.00
Call Any of our Sales Experts to Place an Order. We offer Expert Advice, Quick Quotes and Product Availability.
Our Team Consists of "Vacuum Experts", Challenge Us!
Mon-Fri 8 am to 5:00 pm EST
Coming Soon; Hours to 8:00 pm EST

Call Toll Free: 866.203.9939 within the Lower 48 States

Outside the US: 508.230.7118

"Over 100 Years of Experience"
Ships Factory Direct
  • DESCRIPTION
  • TECH DATA
  • PRODUCT REVIEWS
  • Documents
  • Product Q & A

DESCRIPTION

Dekker DV0020D-KA3, 20 ACFM, 1.5 HP, Titan Single Stage Monoblock and Bare-Shaft Liquid Ring Vacuum Pump

Dekkers Titan single-stage high-efficiency liquid ring vacuum pumps are capable of vacuum levels up to 29" Hg.

The pumps feature a variable discharge port design which adjusts automatically to the internal compression ratio of the vacuum pump resulting in maximum efficiency throughout the vacuum range. Advanced fluid dynamics result in high volumetric efficiency with 50% less seal-liquid requirement.

Product Features

  • Designed for heavy duty applications
  • 316 stainless steel impeller is standard
  • Sturdy Bearing pedestal mounts to standard NEMA C-face motor
  • Manufactured to ISO 9001:2015 standards
  • Low operating noise level
  • Heavy duty bearings mounted external to the pumping chamber
  • Features single face mechanical seal as standard
  • Virtually no maintenance is required
  • Pumps are available in different materials to suit your application
  • Capable of handling saturated gas mixtures
  • Capable of handling small amounts of liquids
  • Only one moving part
  • Operates using various seal fluids

Specs

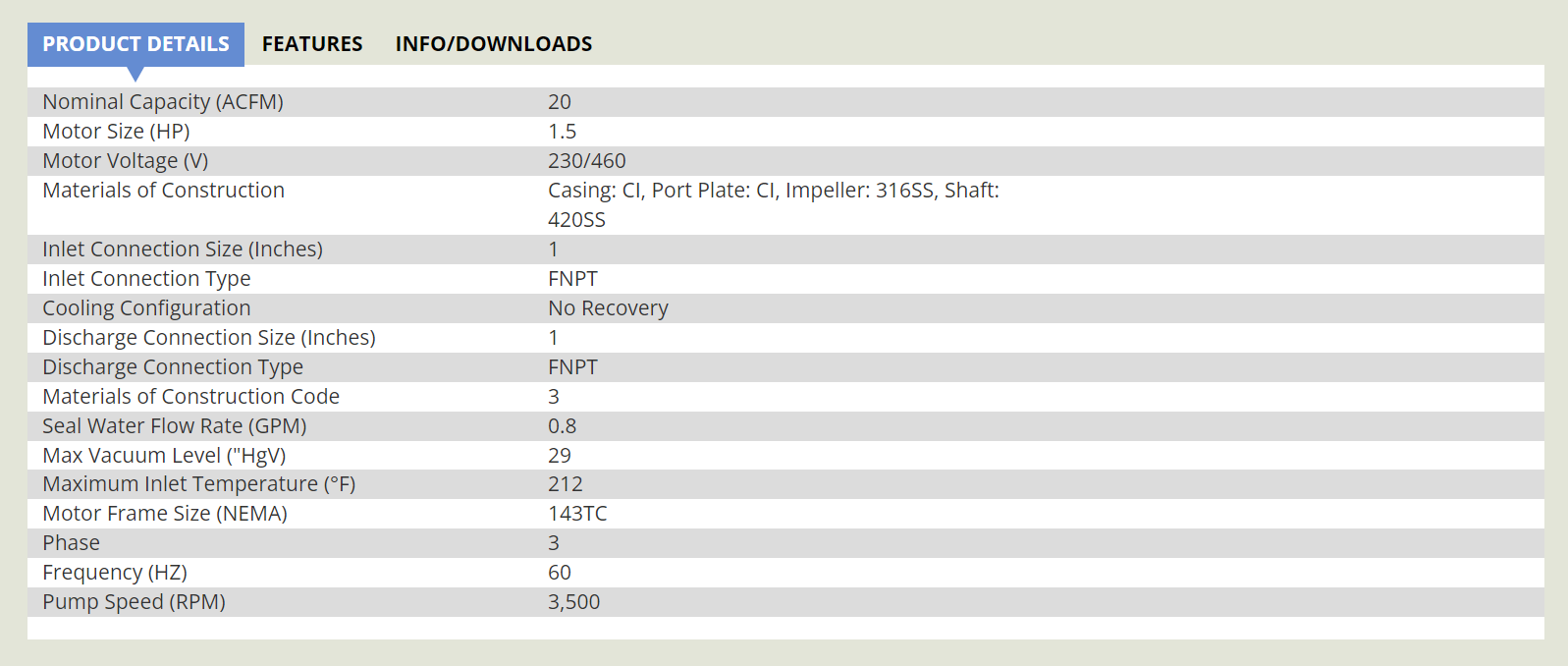

TECH DATA

  • Product Specification

    • CFM (Capacity)
      20 CFM
    • Horsepower (HP)
      1.5 HP
    • Pump Speed (RPM)
      3500
  • Overview & Technical Details

    • Max Inlet Temperature
      212°F
    • Max Vacuum Level ("HgV)
      29
  • Connection

    • Connection NPT
      1" FNPT
  • Power Requirements

    • 230/240/3/60
      Standard
    • 460/480/3/60
      Standard
