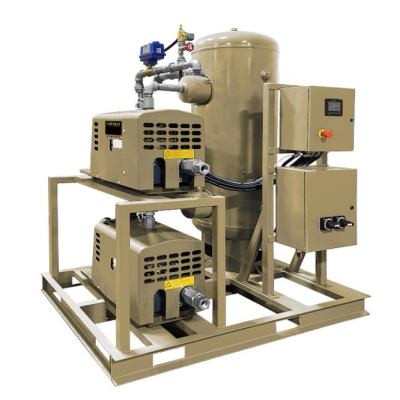

Dekker CMD108S2-00-DS, 10 HP Dry Claw Vacuum Pump System - Stack Mounted, 216 ACFM

Dekker CMD108S2-00-DS, 10 HP Dry Claw Vacuum Pump System - Stack Mounted, 216 ACFM

System Features

• Gryphon oil-free (dry) claw vacuum pump
• Electric motor TEFC, 230/460V, 3phase, 60Hz
• Maximum vacuum 37 - 105 Torr
• Inlet isolation valve
• Inlet flex connector
• Secondary non-return inlet check valve
• Inlet filter
• Vertical vacuum receiver tank (ASME coded), see below for size
• Receiver level sight gauge, vacuum gauge, drain valve
• Base with pumps on stack mount

Control Panel Features

• Across-line magnetic vacuum pump starter with 3phase overload protection
• Monitors, measures, and displays performance
• Identifies fault conditions
• Standard 460V. Available in 200/230/575V, 3phase, 60Hz (NEMA 12, CUL listed)
• PLC with integral hour meter (no mechanical metering required)
• Vacuum on/off capability with adjustable set points
• Vacuum transducer, for vacuum level indication and control
• 24VDC power supply
