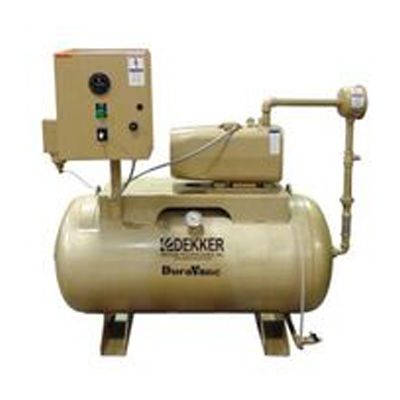

DEKKER 5.5 HP Dry Rotary Vane Vacuum Pump System | 71 ACFM | 120 Gallon Tank | RMD076T1-00-DS

Model:
RMD076T1-00-DS
+ -
$24,160.00
Call Any of our Sales Experts to Place an Order. We offer Expert Advice, Quick Quotes and Product Availability.
Our Team Consists of "Vacuum Experts", Challenge Us!
Mon-Fri 8 am to 5:00 pm EST
Coming Soon; Hours to 8:00 pm EST

Call Toll Free: 866.203.9939 within the Lower 48 States

Outside the US: 508.230.7118

"Over 100 Years of Experience"
Ships Factory Direct
  • DESCRIPTION
  • TECH DATA
  • PRODUCT REVIEWS
  • Documents
  • Product Q & A

DESCRIPTION

DEKKER 5.5 HP Dry Rotary Vane Vacuum Pump System | 71 ACFM | 120 Gallon Tank | RMD076T1-00-DS

DuraVane 100% oil-free (dry) rotary vane vacuum systems: air-cooled, heavy-duty, non-lubricated pumps for vacuum applications in a variety of industries such as printing, woodworking, paper converting, vacuum chucking and lifting.



STANDARD SPECIFICATIONS

  • DuraVane oil-free (dry) rotary vane vacuum pump
  • Electric Motor TEFC, 208/460V, 3-phase, 60 hertz
  • Maximum Vacuum 75 to 90 Torr
  • Inlet isolation valve
  • Inlet flex connector
  • Secondary non-return inlet check valve
  • Inlet filter
  • Horizontal vacuum receiver tank (ASME coded)
  • Receiver sight level gauge & vacuum gauge

CONTROL PANEL FEATURES

  • Across-line Magnetic vacuum pump starter with 3-phase overload protection
  • Control-voltage transformer
  • Hour meter
  • Pump running light
  • Hour meter
  • Pump running light
  • HOA selector switch
  • Vacuum switch & Frequent start timer
  • Standard 460V.  Available in 200/230/575, 3-phase, 60 Hz (NEMA 12, CUL Listed)
  • Duplex systems include a microprocessing controller and vacuum transducer in lieu of vacuum switch and frequent start timer



TECH DATA

  • Product Specification

    • CFM (Capacity)
      71 ACFM
    • Horsepower (HP)
      5.5 HP
    • Pump Model
      RVD076L
  • Overview & Technical Details

    • Max Vacuum Level:
      112.5 TORR
  • Additional Features

    • Magnetic Starter
      Included
  • Connection

    • Discharge Connection Size (Inches)
      1.5" FNPT
    • Inlet Connection Size (Inches)
      2" FNPT
  • Power Requirements

    • 208/3/60
      Standard
    • 230/240/3/60
      Standard
    • 460/480/3/60
      Standard
    • Standard Voltages
      208-230/460/3/60
  • Tank Size

    • Tank Size
      120 Gallon Horizontal
  • Warranty

    • Standard Warranty
      Factory Warranty
