DESCRIPTION

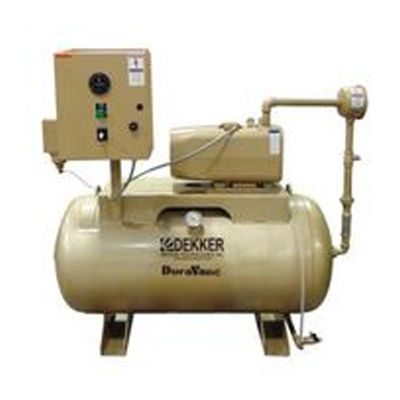

2.5 HP Dry Rotary Vane Vacuum Pump System | 28 ACFM | 60 Gallon Tank | RMD028T1-00-BS
DuraVane 100% oil-free (dry) rotary vane vacuum systems: air-cooled, heavy-duty, non-lubricated pumps for vacuum applications in a variety of industries such as printing, woodworking, paper converting, vacuum chucking and lifting.
STANDARD SPECIFICATIONS
- DuraVane oil-free (dry) rotary vane vacuum pump
- Electric Motor TEFC, 208/460V, 3-phase, 60 hertz
- Maximum Vacuum 75 to 90 Torr
- Inlet isolation valve
- Inlet flex connector
- Secondary non-return inlet check valve
- Inlet filter
- Horizontal vacuum receiver tank (ASME coded)
- Receiver sight level gauge & vacuum gauge
CONTROL PANEL FEATURES
- Across-line Magnetic vacuum pump starter with 3-phase overload protection
- Control-voltage transformer
- Hour meter
- Pump running light
- Hour meter
- Pump running light
- HOA selector switch
- Vacuum switch & Frequent start timer
- Standard 460V. Available in 200/230/575, 3-phase, 60 Hz (NEMA 12, CUL Listed)
- Duplex systems include a microprocessing controller and vacuum transducer in lieu of vacuum switch and frequent start timer
