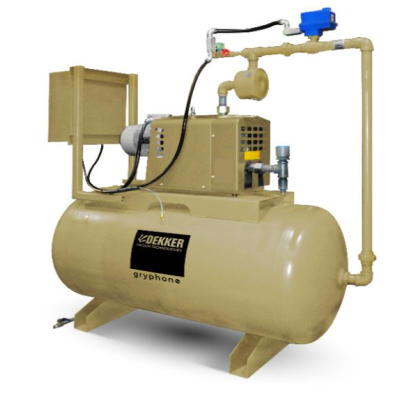

CMD048T1-00-DS, Dekker 3 HP Simplex Dry Claw Vacuum Pump System, 48 ACFM, 120 Gallon Tank, 3-Phase

CMD048T1-00-DS, Dekker 3 HP Simplex Dry Claw Vacuum Pump System, 48 ACFM, 120 Gallon Tank, 3-Phase

STANDARD SPECIFICATIONS

• Gryphon oil-free (dry) claw vacuum pump

• Electric motor TEFC, 230/460V, 3phase, 60Hz

• Maximum vacuum 37 - 105 Torr

• Inlet isolation valve

• Inlet flex connector

• Secondary non-return inlet check valve

• Inlet filter

• Horizontal vacuum receiver tank (ASME coded), see below for size

CONTROL PANEL FEATURES

• Across-line magnetic vacuum pump starter with 3-phase overload protection

• Monitors, measures, and displays performance

• Identifies fault conditions

• Standard 460V. Available in 200/230/575V, 3phase, 60Hz (NEMA 12, CUL listed) • PLC with integral hour meter (no mechanical metering required)

• Vacuum on/off capability with adjustable set points

• Vacuum transducer, for vacuum level indication and control • 24VDC power supply
