DESCRIPTION

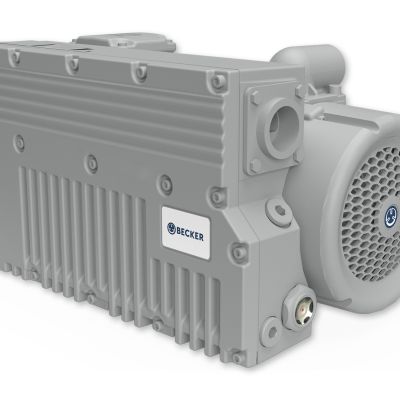

U5.65 (XLK)
ROTARY VANE VACUUM PUMPS, OIL-LUBRICATED
The U 5.65 is a deep vacuum, displacement pump ideally suited for use in packaging and food processing machines. The oil-lubricated rotary vane vacuum pump has freely configurable service openings and high water vapour tolerance.
- Gas ballast valve
- Non return valve
- High efficiency oil separator element
- U 5.65 XL K including oil-air cooler (2.0 litre oil) & U 5.65 (1.0 litre oil)
SPECIFICATIONS
| Volume flow 50 Hz | 65 m³/h |
| Vacuum absolute 50 Hz | 0.5 mbar |
| Power 50 Hz | 1.5 kW |
| Noise Level 50 Hz | 68 dB(A) |
| Volume flow 60 Hz | 78 m³/h |
| Vacuum absolute 60 Hz | 0.5 mbar |
| Power 60 Hz | 1.8 kW |
| Noise Level 60 Hz | 71 dB(A) |
| Weight | 36 kg without motor |
FEATURES
- High efficiency oil separator element
- Oil tank with dual stage oil separation
- Different types of oil for various requirements
- Different gas ballast valves available
- 2 oil tank sizes
BENEFITS
- Low operation and maintenance costs
- Cool and quiet operation
- Small footprint for space savings
- Straightforward construction for fast and easy service on-site to reduce downtime
- Best cold start performance
- High water vapour tolerance
- Robust and long-lasting
