Airtech 65 CFM 6.2 HP Liquid Ring Vacuum Pump 208-230/460V 3 Phase | 3AVN 95

Model:
3AVN 95
+ -
$6,225.00
Call Any of our Sales Experts to Place an Order. We offer Expert Advice, Quick Quotes and Product Availability.
Our Team Consists of "Vacuum Experts", Challenge Us!
Mon-Fri 8 am to 5:00 pm EST
Coming Soon; Hours to 8:00 pm EST

Call Toll Free: 866.203.9939 within the Lower 48 States

Outside the US: 508.230.7118

"Over 100 Years of Experience"
Ships Factory Direct
  • DESCRIPTION
  • TECH DATA
  • PRODUCT REVIEWS
  • Documents
  • Product Q & A

DESCRIPTION

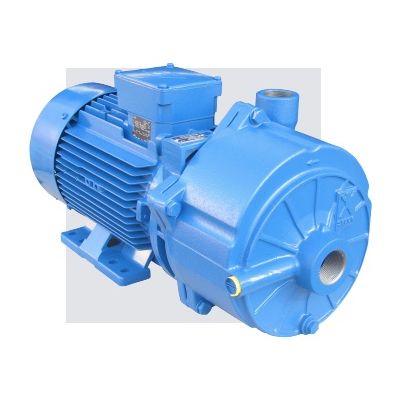

Airtech 65 CFM 6.2 HP Liquid Ring Vacuum Pump 208-230/460V 3 Phase | 3AVN 95

Airtech 3AV Single Stage Lquid Ring Close-Coupled Vacuum Pumps

The Airtech 3AVN Series closed-coupled high water carryover liquid ring vacuum pump are idea option for many applications. offering low power requirements, compact design and reliability. The single stage design incorporates valves, port cylinder and mechanical seal.

3AVN

Features

  • Up to 5 times the delivery of liquid as compared to conventional liquid run vacuum pumps
  • Stable suction capacity even when liquid is delivered
  • No need for pre-separation
  • Easy Installation
  • Regulated power consumption ensures minimal operating cost
  • Extremely low noise level
  • Patented hydtaulic and assembly system

TECH DATA

  • Product Specification

    • CFM (Capacity)
      65 CFM
  • Overview & Technical Details

    • Max Vacuum Level ("HgV)
      29" HgV
    • Seal Water Flow Rate (GPM)
      4 GPM
    • Sound Level dBA
      72 dBA
  • Connection

    • Discharge Connection Size (Inches)
      1 1/2"
  • Dimensions & Weight

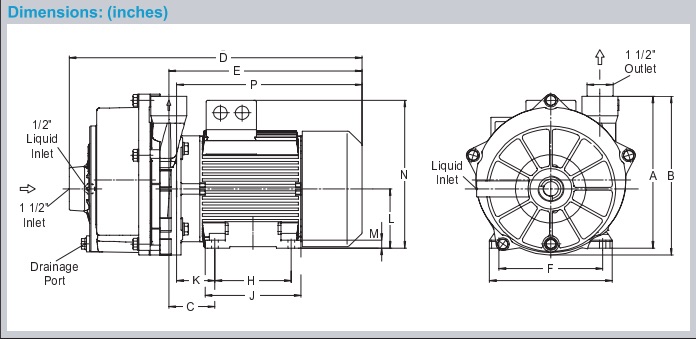

    • Dimensions (L)(W)(H)
      18.4" x 6.3" x 11.8"
    • Weight (lbs)
      134.0000
  • Power Requirements

    • 208/3/60
      16 Amps
    • 230/240/3/60
      16 Amps
    • 460/480/3/60
      8 Amps
