15 HP Heavy Duty Liquid Ring Oil-Sealed Vacuum Pump System | DEKKER VMX0203KA1-00

Loading...
Model:
VMX0203KA1-00
+ -
$23,611.00
Order by Phone
Call Any of our Sales Experts to Place an Order. We offer Expert Advice, Quick Quotes and Product Availability.
Our Team Consists of "Vacuum Experts", Challenge Us!
Mon-Fri 8 am to 5:00 pm EST
Coming Soon; Hours to 8:00 pm EST

Call Toll Free: 617.841.4968 within the Lower 48 States

Outside the US: 617.841.4968

"Over 100 Years of Experience"
Ships Factory Direct
Be the first to review
Write a Review
Request a Quote
  • DESCRIPTION
  • TECH DATA
  • PRODUCT REVIEWS
  • Documents
  • Product Q & A

DESCRIPTION

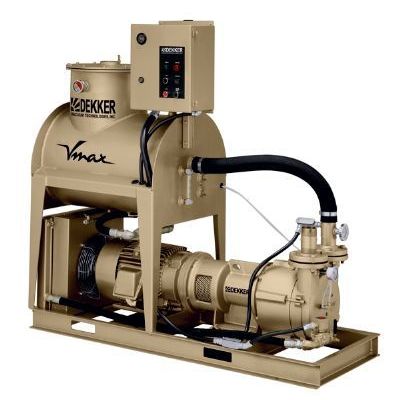

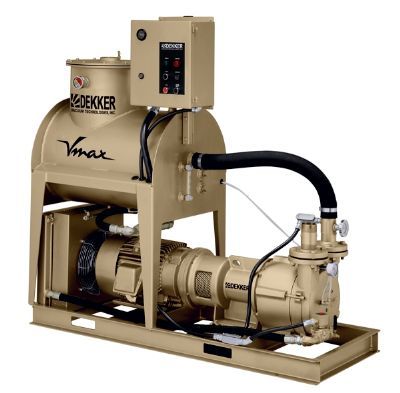

15 HP Heavy Duty Liquid Ring Oil-Sealed Vacuum Pump System | DEKKER VMX0203KA1-00

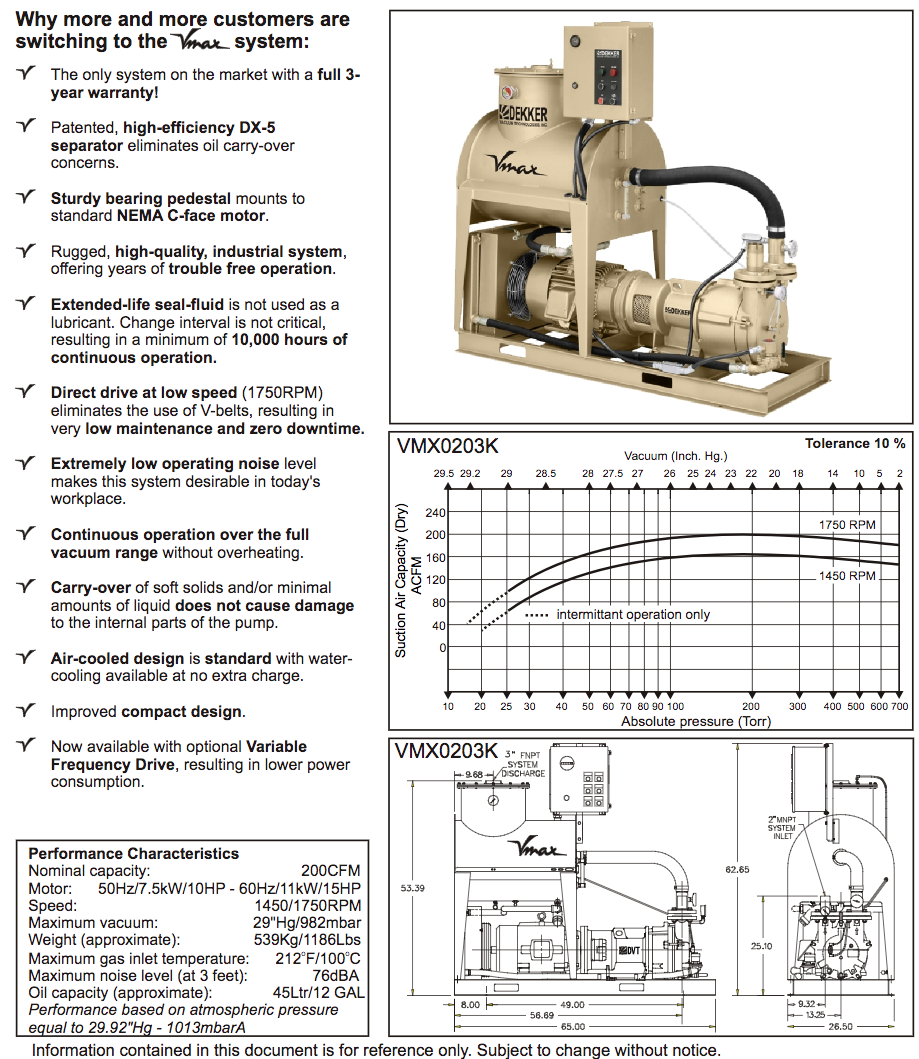

The Vmax system offered by Dekker Vacuum Technologies is the result of years of experience in the design, manufacture, operation, and application of the oil-sealed liquid ring vacuum pump system concept.

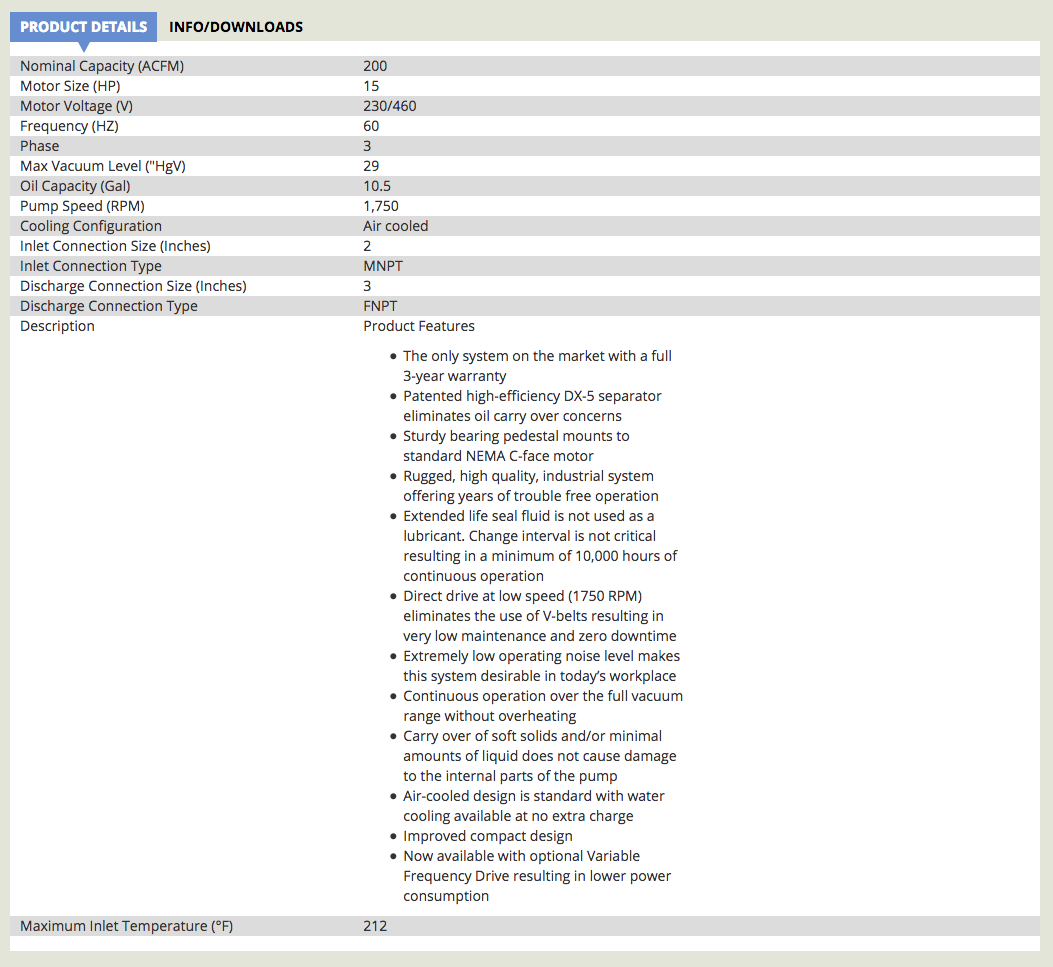

TECH DATA

  • Product Specification

    • CFM (Capacity)
      200 ACFM
    • Cooling Configuration
      Air Cooled
    • Horsepower (HP)
      15 HP
    • Oil Capacity
      12 Gallons (approximate)
    • Pump Model
      DV0200D-KA3
    • Pump RPM
      1750 RPM

  • Overview & Technical Details

    • Max Gas Inlet Temp
      212 Degrees F
    • Max Vacuum Level ("HgV)
      29" HgV
    • Sound Level dBA
      74 dB(A)

  • Connection

    • Discharge Connection Size (Inches)
      3"
    • Discharge Connection Type
      FNPT
    • Inlet Connection Size (Inches)
      2"
    • Inlet Connection Type
      MNPT

  • Power Requirements

    • 230/240/3/60
      Standard
    • 460/480/3/60
      Standard
    • Standard Voltages
      208-230/3/60

  • Warranty

    • Standard Warranty
      Factory Warranty
